BMW N47/B47 EGR Cooler: Coolant Loss, White Smoke and Why a Top-Up Is Not a Repair
Low coolant with no puddle under an N47/B47 often means the EGR cooler is leaking inward. This is the job as we diagnose it in London.
The leak goes into the engine, not the floor

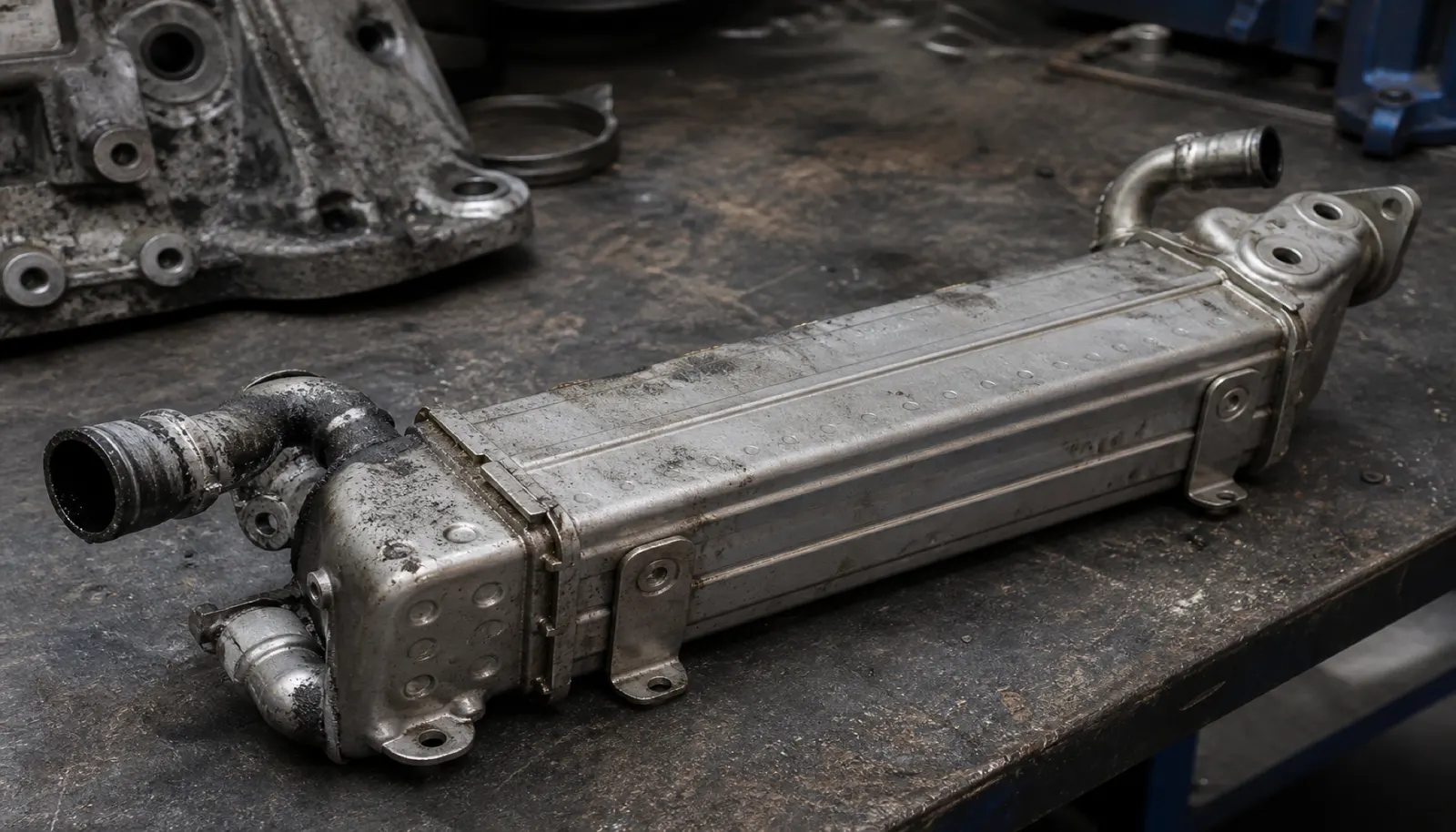

An EGR cooler uses coolant to drop exhaust-gas temperature. When it cracks, coolant is ingested. You smell sweetness, see white smoke, and the tank drops with a dry floor. People keep topping up until the DPF is soaked or the engine hydrolocks. Stop topping up and get it to Hainault.
N47 and B47 both do this
B47 improved the chain layout; it did not make EGR coolers immortal. 1 Series, 3 Series, 5 Series and X1 cars all appear with the same story. ISTA may store EGR temperature or control deviations; the smoke on a cold start is the giveaway.
Blanking is not the repair
We replace the cooler with a quality part and restore the system. EGR deletes fail MOT and dump the problem into the DPF. If carbon is heavy we talk about intake cleaning as a separate item.
Related damage
Coolant in the DPF and glazed sensors are why we scan soot/ash after an EGR cooler job. Glow plugs and swirl flaps sometimes join the invoice if they were already on the way out. We will show you, not hide extras in “while we’re in there” without a quote.
After replacement
Bleed the cooling system properly, ISTA clearance, road test, and a coolant-level check after a heat cycle. If the car overheated badly we discuss whether a compression test is wise before you drive it like nothing happened.
