BMW N54 High-Pressure Fuel Pump: Symptoms, Codes and Why It Is Not a Coil Pack
N54 335i and related twins still throw HPFP faults. Long cranks, limp mode and low-rail-pressure codes are the pattern — not another set of spark plugs.
Which engines

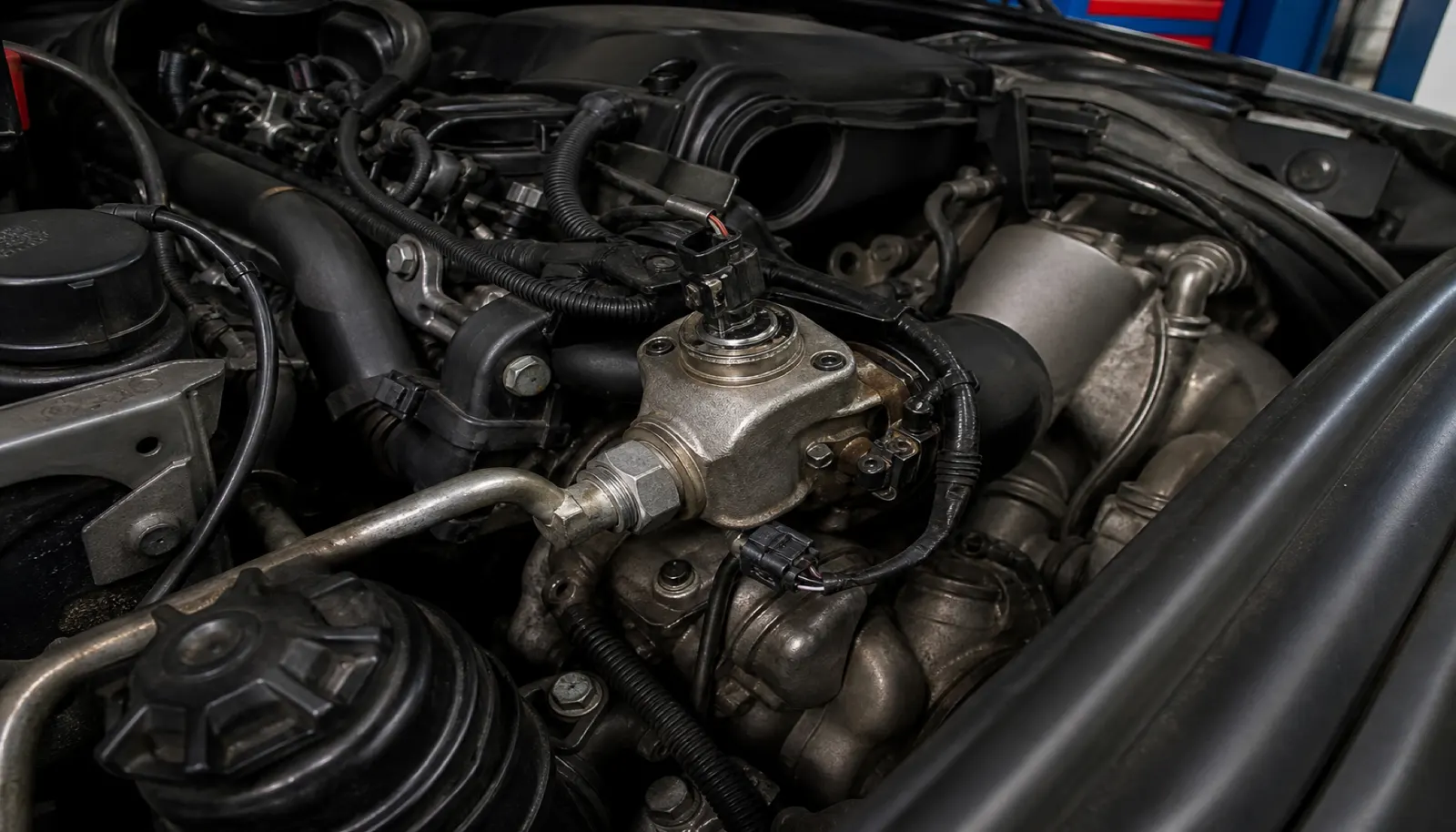

N54 is the twin-turbo six in E90 335i, E60 535i, E82 135i, some X6 35i and Z4 35i. The high-pressure pump sits on the head and feeds direct injection at extreme pressure. When it weakens, rail pressure will not meet the DME request under load.
Symptoms that are not “just coils”
Long crank from cold, hesitation in third on the A12 slip road, limp mode, and a fuel-pressure-plausibility code. Misfire codes appear as a consequence. Replacing six coils because a forum said so wastes money. ISTA live data for rail pressure versus specified pressure is the test.
Injectors and the pump together
N54 injectors also fail (index updates exist). A leaking injector can drown a cylinder and look like HPFP. We check contribution and smoke from the tailpipe before ordering a pump. After HPFP replacement, ISTA adaptations must be reset so the DME relearns.
Wastegates, VANOS and oil
N54 also has wastegate rattle and VANOS solenoids. We mention them because a noisy N54 is not automatically an HPFP. Correct LL-01 oil and CBS matter for VANOS; they do not rebuild a worn pump. We quote the failed part, not the entire N54 folklore list.
After the job at Hainault
New or quality reman HPFP, correct seals, ISTA clearance, and a road test that includes a hard pull. If injectors were marginal we will say so on the report rather than wait for a comeback.
