BMW xDrive Transfer Case: Chatter on Full Lock and Why Fluid Is Not Optional

A binding, chattering xDrive on full lock in a car park is the transfer case, not the ZF 8HP. This is the diagnostic we use on X1/X3/X5 cars in London.

BMW xDrive Transfer Case: Chatter on Full Lock and Why Fluid Is Not Optional

By the BMW Specialists workshop · · Updated · 1 min read

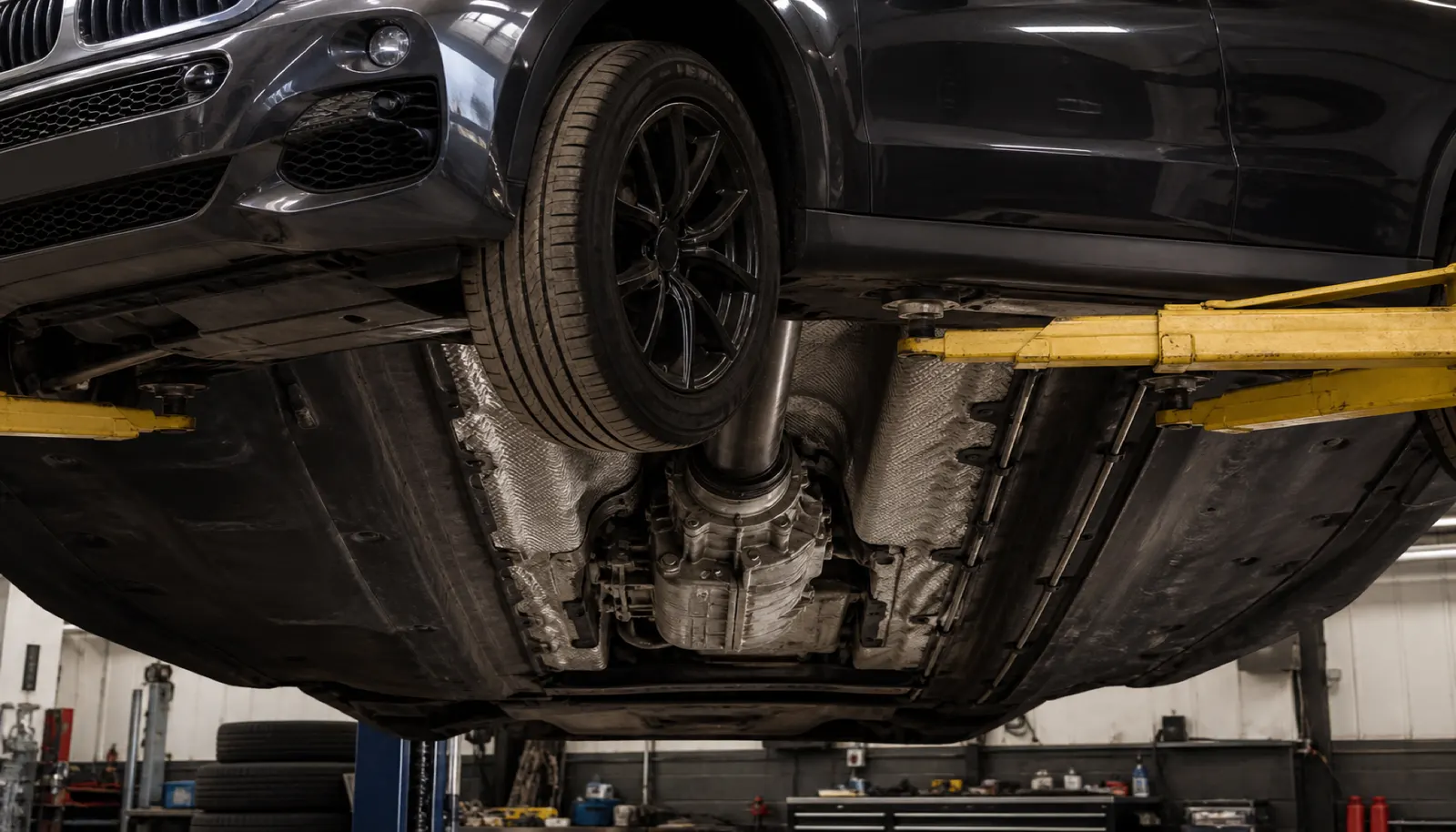

What the ATC unit does

xDrive uses a transfer case (ATC) to split torque front to rear. On full lock at parking speeds the unit has to allow slip. Worn oil or a tired clutch pack inside the case judders and clunks. Owners blame the gearbox because it feels “driveline”. A figure-of-eight test in our yard usually settles it.

Fluid service as prevention

Transfer-case oil is not a CBS item. High-mile X5/X3 cars on original fluid are the ones that chatter. A fluid change is cheap compared with an ATC unit. If the clutch is already scored, fluid will not save it — we will say so after the test drive.

Not 8HP judder

8HP shudder is a light-throttle upshift in a straight line. Transfer-case chatter is lock-to-lock at walking pace. Getting that wrong is how people pay for a gearbox service they did not need. We log both.

Actuators and coding

Some faults are the actuator motor or a module, not the internals. ISTA test plans exist for a reason. Used ATC units need coding. We do not “just swap and hope” at Forest Road.

After the repair

Correct fluid, road test including a tight lock, and no 4x4 warning. If bushes are also knocking we will quote them separately so you can decide.

Frequently asked questions

  • Does my BMW gearbox really need an oil service?

    Yes. Despite "filled for life" marketing, every ZF 8HP and GM 6HP box we see benefits from a fluid and filter service on a sensible interval (typically around 40,000–60,000 miles). It is the single best thing you can do for long-term gearbox health.

  • My BMW automatic is slipping — can it be saved?

    Sometimes. If it is fluid-related or an 8HP mechatronic / adapter-sleeve issue, absolutely. If the clutch packs are mechanically worn, it usually needs a rebuild. A proper gearbox diagnostic on ISTA will tell us which.
