ZF 8HP Mechatronic: Adapter-Sleeve Leaks, Harsh Shifts and When Fluid Is Not Enough

The 8HP mechatronic is the valve body and electronics of the automatic. Sleeve leaks and worn solenoids create harsh shifts that a fluid service cannot fix. This is how we decide at Forest Road.

ZF 8HP Mechatronic: Adapter-Sleeve Leaks, Harsh Shifts and When Fluid Is Not Enough

By the BMW Specialists workshop · · Updated · 1 min read

What the mechatronic is

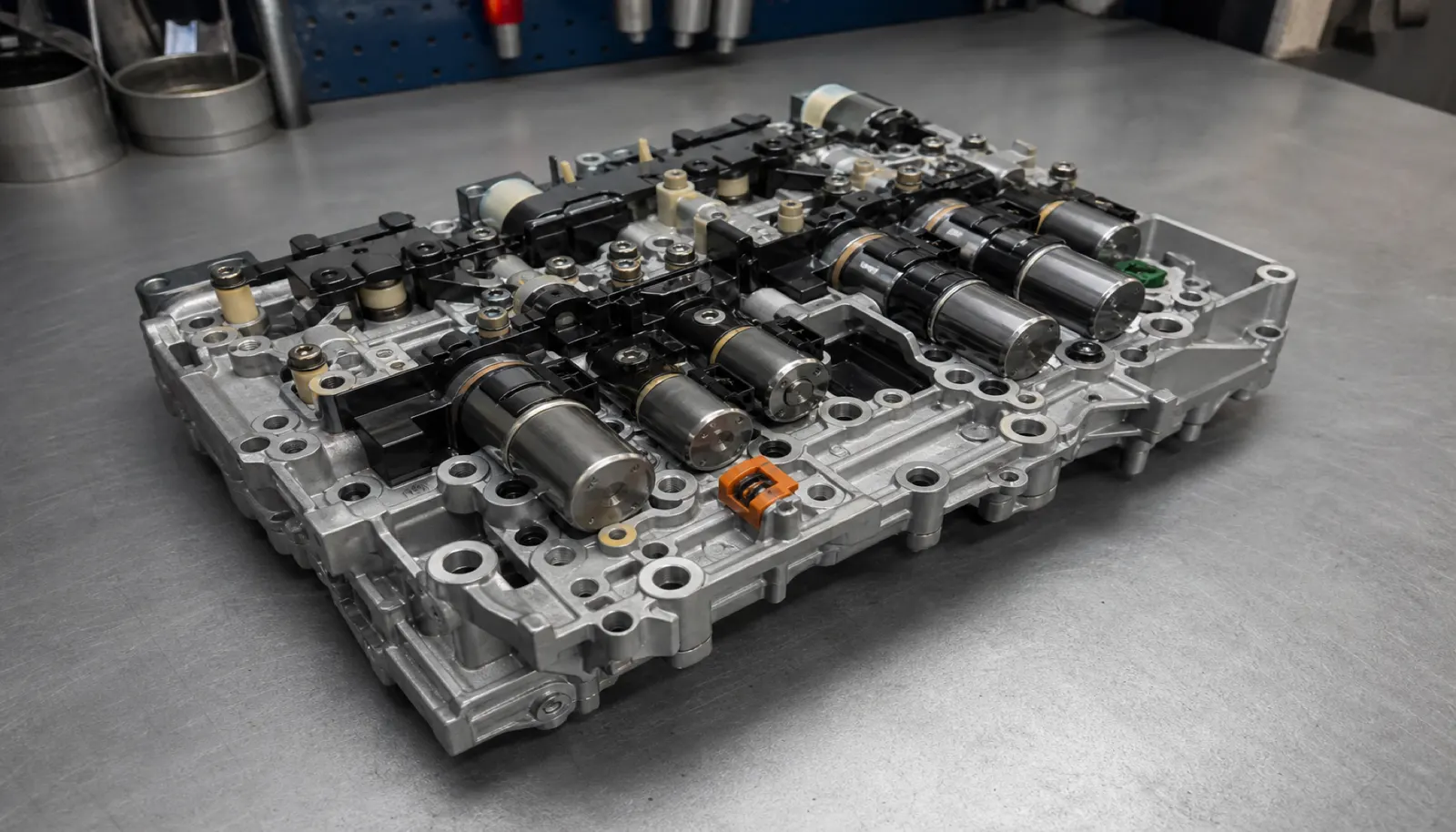

On ZF 8HP the mechatronic combines hydraulic valves and the EGS electronics. It lives in the pan area. Adapter sleeves (seals between the mechatronic and the case) leak internally, fluid aerates, and shifts go harsh or the car drops to limp. It is the BMW analogue of older “conductor plate” stories — different hardware, same “it’s the control unit in the box” idea.

Symptoms versus 8HP judder

Judder at tiny throttle is often old fluid. Flare, bang into gear, delayed Drive, and a transmission-malfunction lamp are more mechatronic or clutch. ISTA EGS faults and adaptation values sort that. We do not pull a mechatronic because a forum said so after one shudder.

Sleeve repair versus unit

Some variants allow sleeve/seal kits. Others need a mechatronic. Used units need coding. We quote the path that matches the codes and the pan inspection (clutch material in the oil is a clutch conversation, not a sleeve conversation).

Fluid still matters

A neglected fill cooks the mechatronic. If we replace the unit we still fill with Lifeguard 8 to spec. Skipping fluid on a new mechatronic is how you buy a second one.

Workshop process

Scan, road test, pan inspection if indicated, then a fixed-price quote. Gearbox work is booked into a bay at Hainault — it is not a while-you-wait pad change. We will say if the car should not be driven in the meantime.

Frequently asked questions

  • What are the symptoms of a ZF 8HP mechatronic or adapter-sleeve leak?

    Delayed engagement from P or R, harsh or flaring shifts, transmission fluid around the bellhousing connector, limp mode, or the car refusing to select gear when hot. These are classic ZF 8HP mechatronic / adapter-sleeve faults — not a 7G conductor plate.

  • My BMW automatic is slipping — can it be saved?

    Sometimes. If it is fluid-related or an 8HP mechatronic / adapter-sleeve issue, absolutely. If the clutch packs are mechanically worn, it usually needs a rebuild. A proper gearbox diagnostic on ISTA will tell us which.

  • Does my BMW gearbox really need an oil service?

    Yes. Despite "filled for life" marketing, every ZF 8HP and GM 6HP box we see benefits from a fluid and filter service on a sensible interval (typically around 40,000–60,000 miles). It is the single best thing you can do for long-term gearbox health.
